GR25

GR25: G-HD0029-2RC-BK

Braided Brake Line Rear

Braided Brake Line Rear

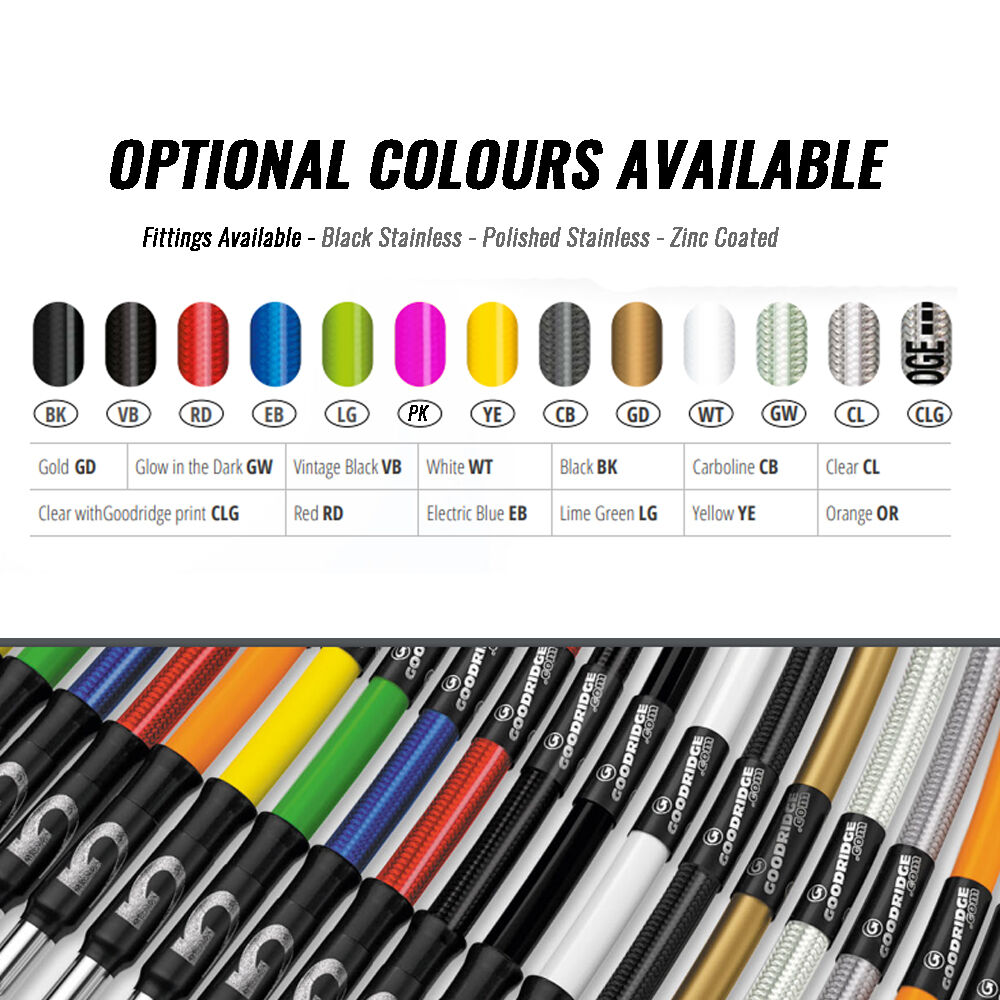

Colour and fitting options available

Specifications
SKU G-HD0029-2RC-BK
Brand GR25


or 4 payments of $56.25 with Info

In Stock
Please call for in-store purchases


Calculate Shipping


Have your own agent? - $0.00
If this option is elected MetalGear will supply you with parcel information (weight / measurements) and address details for you to organise collection with your preferred shipping agent. When you have completed the freight booking, all relevant documentation and consignment notes will need to be emailed to sales@metalgear.com.au for us to attach to your parcel/s. All shipping costs will be at your expense and the transaction will be processed between you and your shipping agent.


More options at checkout


Description

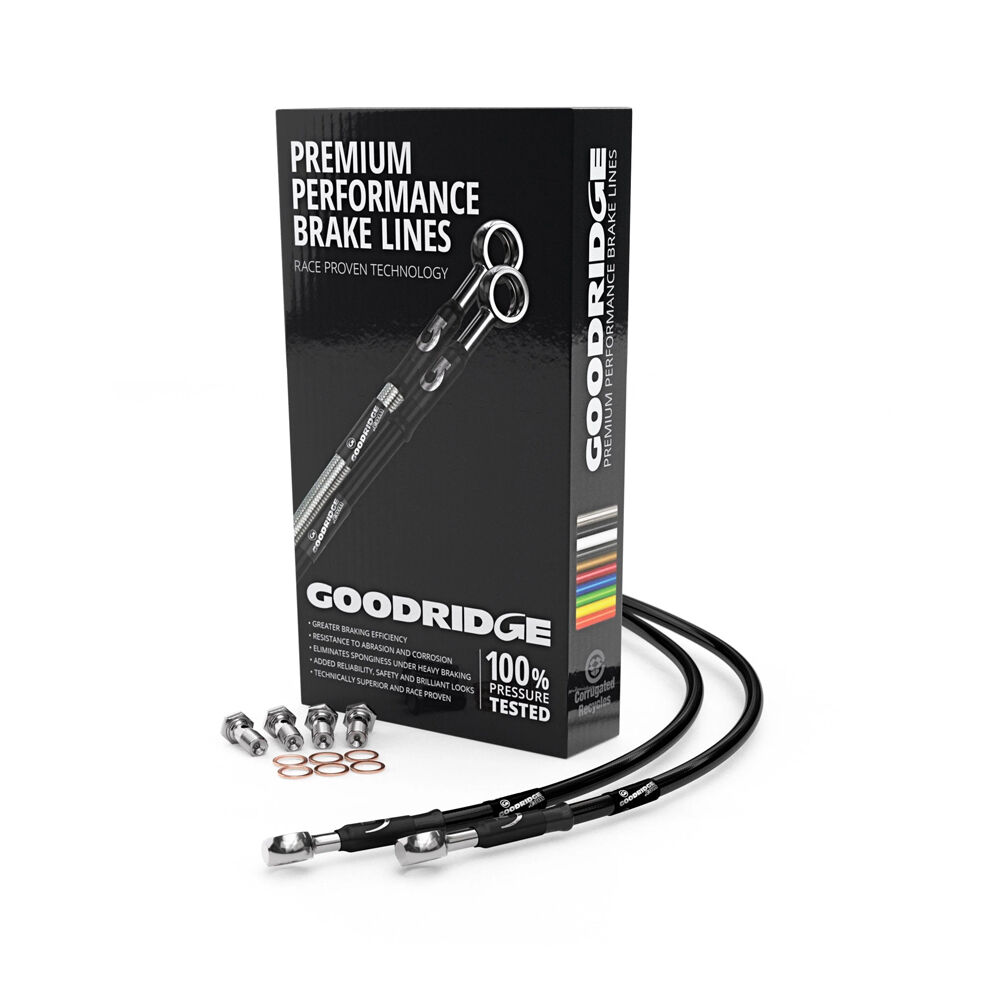

Goodridge Braided Brake Lines

  • Improves brake feel at the lever
  • These lines are custom and made to order
  • Turnaround within 2 business days from ordering (you wlll be contacted if there are delays)
  • Availability may very, you will be contacted if there are delays
  • Full Make Year Model needed to confirm exact fitment
  • Standard lengths are for standard bar height, please advise if more length is required
  • Please contact for further information

Brake Lines in detail.

Goodridge stainless steel motorcycle brake and clutch line kits feature the finest quality hose, consisting of a PTFE inner and stainless steel braided outer coated in a plastic protective coating in the colour of your choice.

Braided brake line eliminates the spongy feel under extreme braking conditions giving greater braking efficiency as well as providing a superior resistance to abrasion and corrosion.

Goodridge kits not only provide reliability and safety, but also brilliant looks that improve the appearance of any bike. Goodridge prides itself in being able to supply stainless steel hydraulic brake line kits for any make or year of motorcycle, be it British, Japanese, American, German or Italian.

  • Goodridge stainless steel braided brake and clutch lines are 100% ADR APPROVED in every state in territory in the WORLD
  • Meets the requirements of DOT and TUV .Goodridge set the standards, the others followed.
  • We can supply a complete build-a-line program so you have a totally universal brake line program at your fingertips
  • Whether you’re building a custom bike or fitting a set of higher or lower bars this program caters for the lot

Technical Details

High speed, constant rapid gear changes and fast stops put great strains on competition hydraulic systems, where failure can be disastrous. The light weight and extremely flexible PTFE hose strongly resists expansion under high pressure and temperature, and provides consistent brake and clutch pressure giving firmer and more efficient operation without that spongy feeling.

PTFE inner tube is compatible with all brake and clutch fluids with outer cover of corrosion and fire resistant stainless steel.

Temperature range: -73 degrees Celsius to 232 degrees Celsius.

  • Bore size: 3.5mm
  • PTFE wall thickness 1.0mm
  • Braid O/D 6.45
  • Cover wall thickness 0.5m
  • Max W.P. pressure 4250 basic
  • Weight 0.088kg/m
  • Burst Pressure of over 12,000PS1

Part Fits:

HARLEY 1984 FXST 1340 Standard 81 Brakes Rear Brake Lines Rear -

HARLEY 1985 FXST 1340 Standard 81 Brakes Rear Brake Lines Rear -

HARLEY 1986 FXST 1340 Standard 81 Brakes Rear Brake Lines Rear -

HARLEY 1986 FXSTC 1340 Custom 82 Brakes Rear Brake Lines Rear -

HARLEY 1987 FXST 1340 Standard 81 Brakes Rear Brake Lines Rear -

HARLEY 1987 FXSTC 1340 Custom 82 Brakes Rear Brake Lines Rear -

HARLEY 1988 FXST 1340 Standard 81 Brakes Rear Brake Lines Rear -

HARLEY 1988 FXSTC 1340 Custom 82 Brakes Rear Brake Lines Rear -

HARLEY 1988 FXSTS 1340 Springer Brakes Rear Brake Lines Rear -

HARLEY 1989 FXST 1340 Standard 81 Brakes Rear Brake Lines Rear -

HARLEY 1989 FXSTC 1340 Custom 82 Brakes Rear Brake Lines Rear -

HARLEY 1989 FXSTS 1340 Springer Brakes Rear Brake Lines Rear -

HARLEY 1990 FXST 1340 Standard 81 Brakes Rear Brake Lines Rear -

HARLEY 1990 FXSTC 1340 Custom 82 Brakes Rear Brake Lines Rear -

HARLEY 1990 FXSTS 1340 Springer Brakes Rear Brake Lines Rear -

HARLEY 1991 FXST 1340 Standard 81 Brakes Rear Brake Lines Rear -

HARLEY 1991 FXSTC 1340 Custom 82 Brakes Rear Brake Lines Rear -

HARLEY 1991 FXSTS 1340 Springer Brakes Rear Brake Lines Rear -

HARLEY 1992 FXSTC 1340 Custom 82 Brakes Rear Brake Lines Rear -

HARLEY 1992 FXSTS 1340 Springer Brakes Rear Brake Lines Rear -

HARLEY 1993 FXSTC 1340 Custom 82 Brakes Rear Brake Lines Rear -

HARLEY 1993 FXSTS 1340 Springer Brakes Rear Brake Lines Rear -

HARLEY 1994 FXSTC 1340 Custom 82 Brakes Rear Brake Lines Rear -

HARLEY 1994 FXSTS 1340 Springer Brakes Rear Brake Lines Rear -

HARLEY 1995 FXSTC 1340 Custom 82 Brakes Rear Brake Lines Rear -

HARLEY 1995 FXSTS 1340 Springer Brakes Rear Brake Lines Rear -

HARLEY 1995 FXSTSB 1340 Bad Boy Brakes Rear Brake Lines Rear -

HARLEY 1996 FXSTC 1340 Custom 82 Brakes Rear Brake Lines Rear -

HARLEY 1996 FXSTS 1340 Springer Brakes Rear Brake Lines Rear -

HARLEY 1996 FXSTSB 1340 Bad Boy Brakes Rear Brake Lines Rear -

HARLEY 1997 FXSTC 1340 Custom 82 Brakes Rear Brake Lines Rear -

HARLEY 1997 FXSTS 1340 Springer Brakes Rear Brake Lines Rear -

HARLEY 1997 FXSTSB 1340 Bad Boy Brakes Rear Brake Lines Rear -

HARLEY 1998 FXSTC 1340 Custom 82 Brakes Rear Brake Lines Rear -

HARLEY 1998 FXSTS 1340 Springer Brakes Rear Brake Lines Rear -

HARLEY 1999 FXST 1340 Standard 81 Brakes Rear Brake Lines Rear -

HARLEY 1999 FXSTB 1340 Night Train Brakes Rear Brake Lines Rear -

HARLEY 1999 FXSTC 1340 Custom 82 Brakes Rear Brake Lines Rear -

HARLEY 1999 FXSTS 1340 Springer Brakes Rear Brake Lines Rear -
